AP3935i - 802.3at on K-Series

[Mar100co]

Hello Hub,

I guess i am not the first one who had this Problem, but I don't seem to get PoE+ out of our K-Series everytime the AP Prompts me with:

**** ATTENTION LOW POWER MODE is set Radios limited to 2x2 ***

Our Wireless Controllers are two 5215 running 10.51.05.0005

I already found this GTAC KB Entry:
https://extremeportal.force.com/ExtrArticleDetail?an=000088997
>> But the Power Override Option seems to be quite risky as i understand it.
"Check this box to have AP ALWAYS operate in 4x4 mode regardless what was negotiated with the
Switch PoE4). When this option is cleared, the AP operates in 2x2 or 4x4 depending on what was
negotiated with the Switch Poe using the 2-event classification."

• What would happen, if the AP gets 802.3af power and works in 4x4 mode but would need more Power than delivered? Will the AP Reboot or Crash due to insufficient power?

Within this GTAC KB Entry were more interesting articles linked:

• https://extremeportal.force.com/ExtrArticleDetail?an=000071104

>> set lldp port tx-tlv poe ge.x.x


still the same Low Power Mode warning

• https://extremeportal.force.com/ExtrArticleDetail?an=000062000

We are running the Firmware version: 08.62.05.0004


Then i configured the powerlimit on the desired port ge.1.4 because it looked like this:

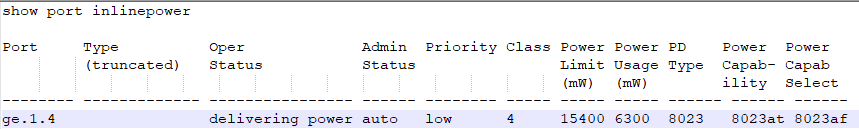

show port inlinepower

i configured: "set port inlinepower ge.1.4 powerlimit 34000 capability 8023at admin auto"

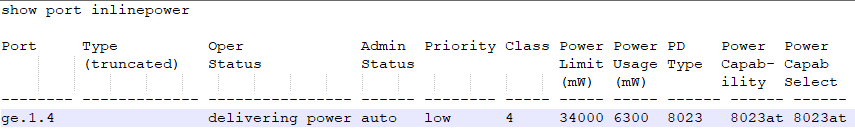

now it looks like this:

at this point i thought i resolved the issue but i am still getting the 2x2 Low power Warning

What am i missing?
I would be very happy if somebody has an idea how to resolve this.
Thank you in advance.

I wish you a nice week-end

[Mar100co]

Hello again,

I resolved the issue and would like to help all of you who experience this issue by themselves.

First of all the port needs to have the 802.3at Powerlimit and Capabilities:
>> set port inlinepower ge.x.x powerlimit 34000 capability 8023at admin auto

second the KB-Entry:
https://extremeportal.force.com/ExtrArticleDetail?an=000071104

>> set lldp port tx-tlv poe ge.x.x

(not sure if needed
But there needs to be done one tiny thing more

>> set lldp port tx-tlv med-poe ge.x.x

Then the AP comes up in 4x4 mode and shows in the AP-Inventory Report

"LLDP-MED Override" as mentioned in this KB-Entry:
https://extremeportal.force.com/ExtrArticleDetail?an=000064337

I would greatly appreciate if both of these KB-Entries could be extended with the commands above.

Have a great week

Mar100co
