how to connect a new AP 3825i to the administrator of ap's Extreme Network?
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Report Inappropriate Content
‎07-16-2018 02:41 PM
how to connect a new AP 3825i to the administrator of ap's Extreme Network?
27 REPLIES 27
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Report Inappropriate Content
‎07-17-2018 03:51 PM
yes indeed can ping from PC, and not from controller.
connecting via SSH GW is reachable but not the controller.
doing the same on other AP gives me ping on both GW and Controller.
is there something missed on the Ports?
connecting via SSH GW is reachable but not the controller.
doing the same on other AP gives me ping on both GW and Controller.
is there something missed on the Ports?
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Report Inappropriate Content
‎07-17-2018 03:33 PM
HI All,
back again with some findings and details for you.
the AP was set back to factory setting to enable a proper start
Controller static IP was set on the AP -- 10.100.10.70/24
AP static IP was set -- 10.100.10.78/24
DHCP disabled
all applied and saved and afterwards rebooted
now on the Identifi wireless solution there is no way to "auto" discover AP
Options like DNS or DHCP do not apply to the existing environment as previous colleagues did not used such config (unfortunately no documentation available) as all other AP's have fix ip's and in the DNS environment no Domain is visible.
checked on on-line help, several manuals but with no success
observations:
AP can be pinged from PC but cannot be reached via Controller
all other AP's are connected to the same Core Switch using the same config on all ports (basically a copy)
on the Controller GUI no VLAN id is specified for the existing AP's, although the Controller has VLAN 110 specified in the general setup config
The AP is only used with PoE not with a Power Supply.
In the Controller I see that a Pair Controller with an Ip 10.100.10.202 is used (there is no second controller) but if try to delete it warns me that all foreign Ap's will be lost, not sure if I can go ahead and save as I cannot take the risk to loose the already connected AP's.
hope this helps
back again with some findings and details for you.
the AP was set back to factory setting to enable a proper start
Controller static IP was set on the AP -- 10.100.10.70/24
AP static IP was set -- 10.100.10.78/24
DHCP disabled
all applied and saved and afterwards rebooted
now on the Identifi wireless solution there is no way to "auto" discover AP
Options like DNS or DHCP do not apply to the existing environment as previous colleagues did not used such config (unfortunately no documentation available) as all other AP's have fix ip's and in the DNS environment no Domain is visible.
checked on on-line help, several manuals but with no success
observations:
AP can be pinged from PC but cannot be reached via Controller
all other AP's are connected to the same Core Switch using the same config on all ports (basically a copy)
on the Controller GUI no VLAN id is specified for the existing AP's, although the Controller has VLAN 110 specified in the general setup config
The AP is only used with PoE not with a Power Supply.
In the Controller I see that a Pair Controller with an Ip 10.100.10.202 is used (there is no second controller) but if try to delete it warns me that all foreign Ap's will be lost, not sure if I can go ahead and save as I cannot take the risk to loose the already connected AP's.
hope this helps
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Report Inappropriate Content
‎07-17-2018 03:33 PM
please see attached...
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Report Inappropriate Content
‎07-17-2018 03:33 PM

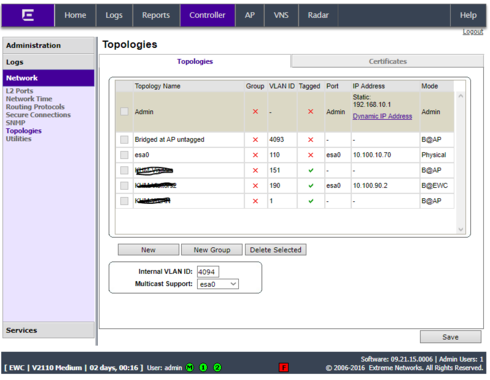

Could you please post a screenshot of > controller > network > topologies
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Report Inappropriate Content
‎07-17-2018 03:33 PM
for some reason no discovery at all, DHCP cannot be enabled in the Controller, following the online help the menu is different and does not allow any DHCP config.
