AP460e can not recognize the ML-2452-APA2-02 antenna and low Tx power

[Son_Nguyen2]

Hi Community,

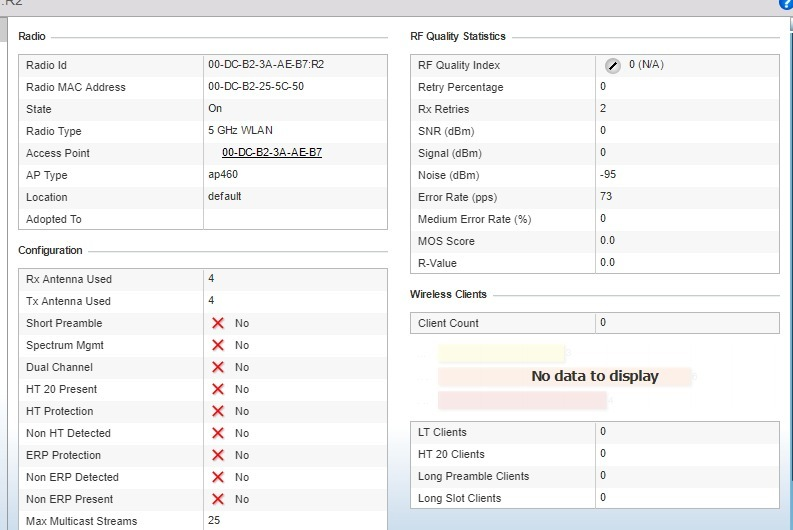

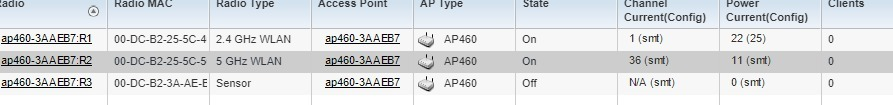

After connecting the ML-2452-APA2-02  antenna to AP460e,  the parameters are shown at the below image, it seem the AP460e does not recognize the ML-2452-APA2-02 antenna, isn't it? And the current Tx power for 5G is very low (11dbm) , while the 2.4G radio is 22 dBm.

Does anyone let me know the configuration is true or not ?

[Christoph_S]

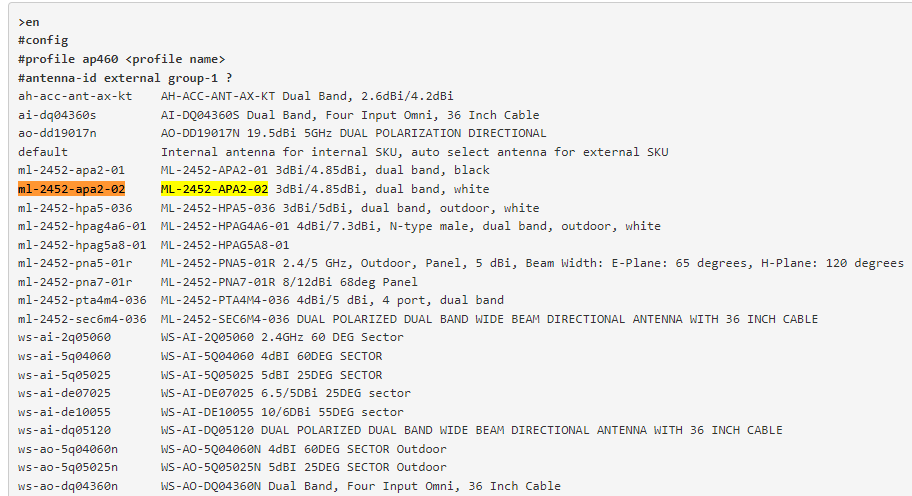

Have you tried configuring the antenna id and group per my previous suggestion?

Please keep me posted.

Thank you,

Chris

[Son_Nguyen2]

Hi Christoph,

But at the article you send, the ML-2452-APA2-02 is available, and i do not see the ML-2452-HPA6-01 which is available in the Antenna Compatibility Matrix ?


Thank you.

[Christoph_S]

Hello Son,

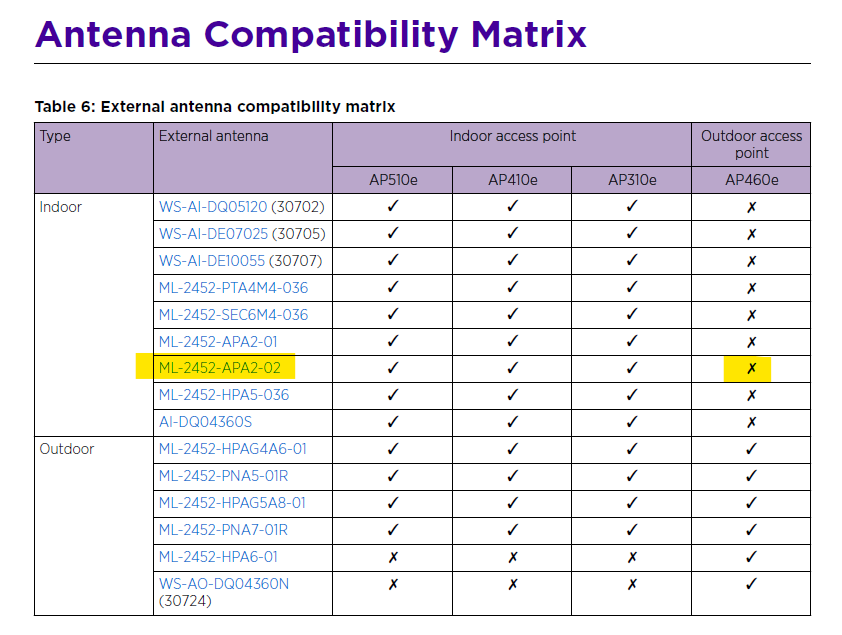

Per the Antenna Compatibility Matrix, this antenna is not compatible; however, have you tried configuring the antenna id and group per this article? https://extremeportal.force.com/ExtrArticleDetail?an=000100518



Thank you
