Configure VRRP Protocol

[Daniel_Valera1]

Hello community. How to configure VRRP between a SW BD8810 and WM3700?

[BrandonC]

Hi Daniel,

You should be able to create the VRRP instance on the WMs with the commands below.
vrrp interface vlan vrrp ip Since this will be the same on both WMs, you should be able to put this config into the WM3700 profile.

-Brandon

[BrandonC]

I created a GTAC Knowledge article for this as well.

[Daniel_Valera1]

Hi Alex.

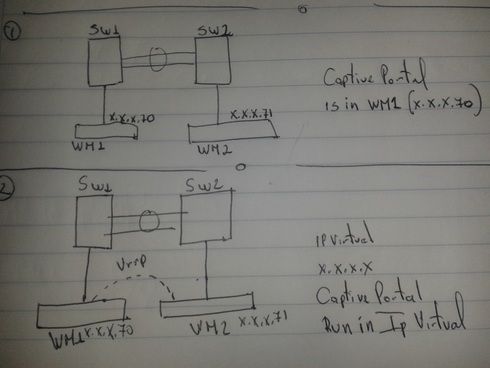

(1)I have two BD8810 sw interconnected and two wm connected to each SW . I have a captive portal that runs on a WM. (2)I want to configure VRRP for the Captive Portal to run in a virtual ip for redundancy.

attached example

[Alexandr_P]

Hi!

You mean - BD and WM will be two VRRP instances with 1 VIP?
