RFS4000 act as router to cable modem?

[Nathan_Derichsw]

I am having difficultly getting an RFS4000 to connect to my ISP through my cable modem. I am new to AP controllers. I would assume(correct me if I am wrong) that the RFS4000 could replace my router. I also have 2 APs that I am going to deploy with the RFS4000.

Does not connect to internet: RFS4000 ---> cable modem ---> Internet
Connects to internet: RFS4000 ---> router ---> cable modem ---> internet

[RobertZ]

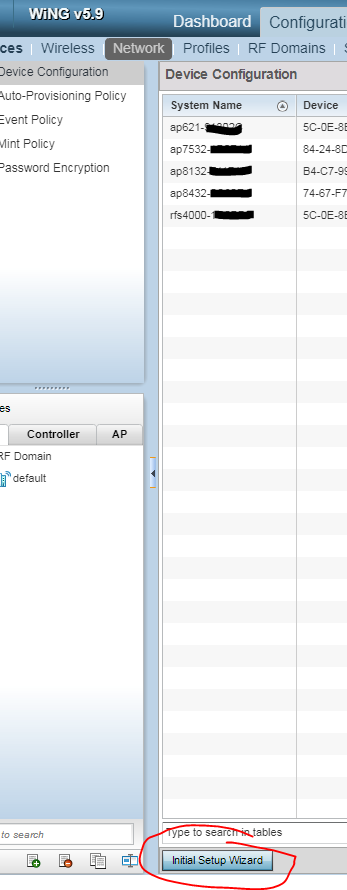

looks like you have the default config on it. Since you are still learning you may be better off using the Initial Setup Wizard. Please log in to the controller via GUI. Then click on the configuration tab, once there look for "Initial Setup Wizard" button on the bottom of the page.

[Nathan_Derichsw]

There is my config. Sorry its so long! I am also having some meshpoint issues(excessive flooding - TR RX bandwidth realllly high)...ugh.. First time configuring all of this. Still learning.

[Nathan_Derichsw]

rfs4000-6F9F96#show run
!
! Configuration of RFS4000 version 5.9.2.0-032R
!
!
version 2.5
!
!
client-identity-group default
load default-fingerprints
!
ip access-list BROADCAST-MULTICAST-CONTROL
permit tcp any any rule-precedence 10 rule-description "permit all TCP traffic"
permit udp any eq 67 any eq dhcpc rule-precedence 11 rule-description "permit D HCP replies"
deny udp any range 137 138 any range 137 138 rule-precedence 20 rule-descriptio n "deny windows netbios"
deny ip any 224.0.0.0/4 rule-precedence 21 rule-description "deny IP multicast"
deny ip any host 255.255.255.255 rule-precedence 22 rule-description "deny IP l ocal broadcast"
permit ip any any rule-precedence 100 rule-description "permit all IP traffic"
!
ip access-list default
permit ip any any rule-precedence 1
!
mac access-list PERMIT-ARP-AND-IPv4
permit any any type ip rule-precedence 10 rule-description "permit all IPv4 traffic"
permit any any type arp rule-precedence 20 rule-description "permit all ARP traffic"
!
ip snmp-access-list default
permit any
!
firewall-policy default
no ip dos tcp-sequence-past-window
!
!
mint-policy global-default
!
meshpoint-qos-policy default
!
wlan-qos-policy default
qos trust dscp
qos trust wmm
!
radio-qos-policy default
!
wlan wlan1
ssid wlan1
vlan 1
bridging-mode tunnel
encryption-type tkip-ccmp
authentication-type none
wpa-wpa2 psk 0 0123456789
!
meshpoint TestMeshpoint
meshid TestMeshpoint
shutdown
beacon-format mesh-point
control-vlan 1
security-mode none
no root
!
meshpoint nateMesh
meshid nateMesh
beacon-format mesh-point
control-vlan 1
allowed-vlans 1
security-mode psk
wpa2 psk 0 0123456789
no root
!
smart-rf-policy "RF Policy"
!
auto-provisioning-policy auto
!
dhcp-server-policy DHCPRFS4K
dhcp-pool VLAN20
network 192.168.20.0/24
address range 192.168.20.101 192.168.20.200
default-router 192.168.20.100
dns-server 8.8.8.8
!
dhcp-server-policy default
dhcp-pool default-vlan-1
network 192.168.1.0/24
address range 192.168.1.140 192.168.1.200
default-router 192.168.1.131
!
!
management-policy default
no telnet
http server
https server
rest-server
ssh
user admin password 1 8a59d906aa75dbabb356e237cd27bdb0063539a8cde956e9b70a2fe9cbb59800 role superuser access all
snmp-server community 0 private rw
snmp-server community 0 public ro
snmp-server user snmptrap v3 encrypted des auth md5 0 admin123
snmp-server user snmpmanager v3 encrypted des auth md5 0 admin123
!
ex3500-management-policy default
snmp-server community public ro
snmp-server community private rw
snmp-server notify-filter 1 remote 127.0.0.1
snmp-server view defaultview 1 included
!
ex3500-qos-class-map-policy default
!
ex3500-qos-policy-map default
!
l2tpv3 policy default
!
profile rfs4000 default-rfs4000
autoinstall configuration
autoinstall firmware
crypto ikev1 policy ikev1-default
isakmp-proposal default encryption aes-256 group 2 hash sha
crypto ikev2 policy ikev2-default
isakmp-proposal default encryption aes-256 group 2 hash sha
crypto ipsec transform-set default esp-aes-256 esp-sha-hmac
crypto ikev1 remote-vpn
crypto ikev2 remote-vpn
crypto auto-ipsec-secure
crypto remote-vpn-client
interface radio1
wlan wlan1 bss 1 primary
interface radio2
wlan wlan1 bss 1 primary
interface up1
switchport access vlan 2100
interface ge1
interface ge2
interface ge3
interface ge4
interface ge5
interface wwan1
interface pppoe1
use firewall-policy default
use client-identity-group default
ip dns-server-forward
logging on
ip nat inside source list default precedence 1 interface vlan2100 overload
service pm sys-restart
router ospf
router bgp
adoption-mode controller
!
profile ap8533 default-ap8533
autoinstall configuration
autoinstall firmware
crypto ikev1 policy ikev1-default
isakmp-proposal default encryption aes-256 group 2 hash sha
crypto ikev2 policy ikev2-default
isakmp-proposal default encryption aes-256 group 2 hash sha
crypto ipsec transform-set default esp-aes-256 esp-sha-hmac
crypto ikev1 remote-vpn
crypto ikev2 remote-vpn
crypto auto-ipsec-secure
crypto load-management
crypto remote-vpn-client
interface radio1
wlan wlan1 bss 1 primary
interface radio2
wlan wlan1 bss 1 primary
interface radio3
interface bluetooth1
shutdown
interface ge1
interface ge2
interface vlan1
ip address dhcp
ip address zeroconf secondary
ip dhcp client request options all
interface pppoe1
use firewall-policy default
use client-identity-group default
logging on
service pm sys-restart
router ospf
adoption-mode controller
!
profile ap82xx default-ap82xx
autoinstall configuration
autoinstall firmware
crypto ikev1 policy ikev1-default
isakmp-proposal default encryption aes-256 group 2 hash sha
crypto ikev2 policy ikev2-default
isakmp-proposal default encryption aes-256 group 2 hash sha
crypto ipsec transform-set default esp-aes-256 esp-sha-hmac
crypto ikev1 remote-vpn
crypto ikev2 remote-vpn
crypto auto-ipsec-secure
crypto remote-vpn-client
interface radio1
wlan wlan1 bss 1 primary
interface radio2
wlan wlan1 bss 1 primary
interface radio3
interface ge1
interface ge2
interface vlan1
ip address dhcp
ip address zeroconf secondary
ip dhcp client request options all
interface wwan1
interface pppoe1
use firewall-policy default
use client-identity-group default
logging on
service pm sys-restart
router ospf
adoption-mode controller
!
profile ap81xx default-ap81xx
autoinstall configuration
autoinstall firmware
crypto ikev1 policy ikev1-default
isakmp-proposal default encryption aes-256 group 2 hash sha
crypto ikev2 policy ikev2-default
isakmp-proposal default encryption aes-256 group 2 hash sha
crypto ipsec transform-set default esp-aes-256 esp-sha-hmac
crypto ikev1 remote-vpn
crypto ikev2 remote-vpn
crypto auto-ipsec-secure
crypto remote-vpn-client
interface radio1
wlan wlan1 bss 1 primary
interface radio2
wlan wlan1 bss 1 primary
interface radio3
interface bluetooth1
shutdown
interface ge1
interface ge2
interface vlan1
ip address dhcp
ip address zeroconf secondary
ip dhcp client request options all
interface wwan1
interface pppoe1
use firewall-policy default
use client-identity-group default
logging on
service pm sys-restart
router ospf
adoption-mode controller
!
profile ap7522 default-ap7522
autoinstall configuration
autoinstall firmware
crypto ikev1 policy ikev1-default
isakmp-proposal default encryption aes-256 group 2 hash sha
crypto ikev2 policy ikev2-default
isakmp-proposal default encryption aes-256 group 2 hash sha
crypto ipsec transform-set default esp-aes-256 esp-sha-hmac
crypto ikev1 remote-vpn
crypto ikev2 remote-vpn
crypto auto-ipsec-secure
crypto load-management
crypto remote-vpn-client
interface radio1
wlan wlan1 bss 1 primary
interface radio2
wlan wlan1 bss 1 primary
interface ge1
interface vlan1
ip address dhcp
ip address zeroconf secondary
ip dhcp client request options all
interface pppoe1
use firewall-policy default
use client-identity-group default
logging on
service pm sys-restart
router ospf
adoption-mode controller
!
profile ap7532 default-ap7532
autoinstall configuration
autoinstall firmware
crypto ikev1 policy ikev1-default
isakmp-proposal default encryption aes-256 group 2 hash sha
crypto ikev2 policy ikev2-default
isakmp-proposal default encryption aes-256 group 2 hash sha
crypto ipsec transform-set default esp-aes-256 esp-sha-hmac
crypto ikev1 remote-vpn
crypto ikev2 remote-vpn
crypto auto-ipsec-secure
crypto load-management
crypto remote-vpn-client
interface radio1
wlan wlan1 bss 1 primary
interface radio2
wlan wlan1 bss 1 primary
interface ge1
interface vlan1
ip address dhcp
ip address zeroconf secondary
ip dhcp client request options all
interface pppoe1
use firewall-policy default
use client-identity-group default
logging on
service pm sys-restart
router ospf
adoption-mode controller
!
profile ap7562 default-ap7562
autoinstall configuration
autoinstall firmware
crypto ikev1 policy ikev1-default
isakmp-proposal default encryption aes-256 group 2 hash sha
crypto ikev2 policy ikev2-default
isakmp-proposal default encryption aes-256 group 2 hash sha
crypto ipsec transform-set default esp-aes-256 esp-sha-hmac
crypto ikev1 remote-vpn
crypto ikev2 remote-vpn
crypto auto-ipsec-secure
crypto load-management
crypto remote-vpn-client
interface radio1
placement outdoor
wlan wlan1 bss 1 primary
interface radio2
placement outdoor
wlan wlan1 bss 1 primary
interface ge1
interface ge2
interface vlan1
ip address dhcp
ip address zeroconf secondary
ip dhcp client request options all
interface pppoe1
use firewall-policy default
use client-identity-group default
logging on
service pm sys-restart
router ospf
adoption-mode controller
!
profile ap8432 default-ap8432
autoinstall configuration
autoinstall firmware
crypto ikev1 policy ikev1-default
isakmp-proposal default encryption aes-256 group 2 hash sha
crypto ikev2 policy ikev2-default
isakmp-proposal default encryption aes-256 group 2 hash sha
crypto ipsec transform-set default esp-aes-256 esp-sha-hmac
crypto ikev1 remote-vpn
crypto ikev2 remote-vpn
crypto auto-ipsec-secure
crypto load-management
crypto remote-vpn-client
interface radio1
wlan wlan1 bss 1 primary

[Christoph_S]

Which device is current the DHCP server and handling natting?
