NAC mappings does not distribute tagged vlans

[Bernd_Gruetzke]

Environment:
Extreme Management Center 8.1.5.22
Switches D2, B5, S-Serie, X-440, EOX-Stack
Switches configured with RFC3850, "set policy maptable response both and policy"
"RFC3850 vlan authorization enabled" and "Filter ID With VLAN Tunnel Attribute".

Symtoms:
no tagged vlan will distributed to the required port .

For instance D2:

show port egress
Port Vlan Egress Registration
Number Id Status Status
------------------------------------------------------------
ge.1.1 1 untagged static
ge.1.1 123 untagged etsysPolicyProfile
ge.1.7 1 untagged static
ge.1.7 250 untagged etsysPolicyProfile
ge.1.12 123 tagged static
ge.1.12 196 tagged static
ge.1.12 250 tagged static

[Bernd_Gruetzke]

Hi Tomasz and Zdenek,

thanks for your tips. I will check all that again. I only have one question left, is the vlan egress a radius attribute or is it provided by the policy mapping?

Best Bernd

[Ronald_Dvorak]

Is the role set to VLAN egress tagged ?!

Result:
B5(su)->show port egress ge.1.1
Port Vlan Egress Registration
Number Id Status Status
------------------------------------------------------------
ge.1.1 1 untagged static
ge.1.1 100 tagged etsysPolicyProfile
B5(su)->

[Bernd_Gruetzke]

Hello Zdenek,

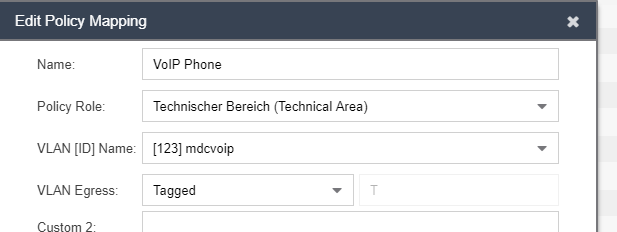

thanks for your prompt answer. First I set the policy mapping as vlan tagged, only at access control, not at policy.....

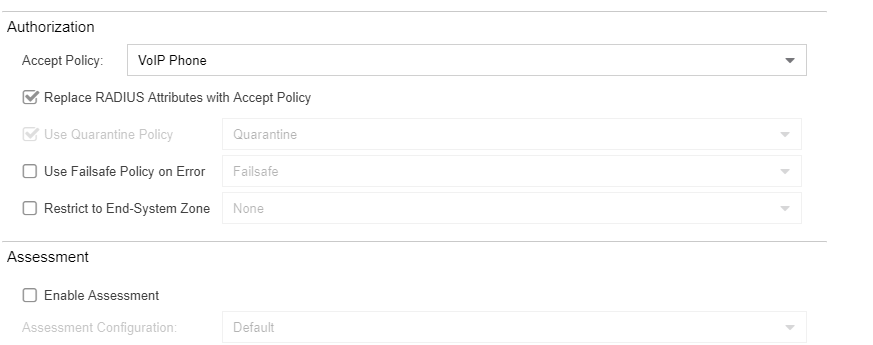

Second I create the profile...

And third I create the rule....

At this moment I won´t use any Policy Roles, I will use it later if it is necessary. I this the wrong way or should I use already Policy Roles at this point too?

Best Bernd

[Zdeněk_Pala]

I suggest to use policy to define if you want untagged or tagged vlan to be assigned to egress.
set policy profile....
