Ports connected to single MLAG id?

Ports connected to single MLAG id?

Alok_Shukla1
New Contributor III

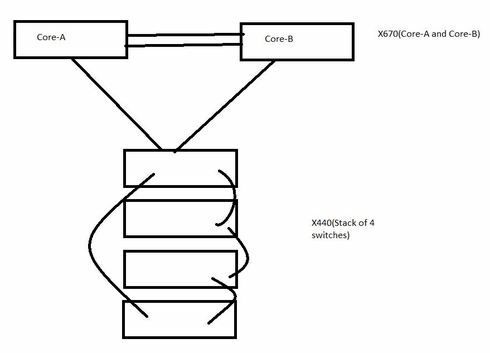

We have Core switches(X-670) that connected to X440(48 ports) stacks of 4 switches. Is this supported "48 ports * 4 switches =192 ports" connected to single MLAG id?



3 REPLIES 3

Eric_Burke
New Contributor III
Only other comment/suggestion is to experiment with different LACP LAG's between the stack and the MLAG core. We've found that L3_L4 seems to provide a bit better distribution and balances the links better in most of our cases (typical traffic, mix of voice/data).

Stephen_Elliot1
Contributor

I'd also connect the MLAG to different slots in the stack for resilience.

Ron_Huygens
Community Manager Community Manager
Community Manager
connecting a stack to a single MLAG id is not a problem.
You may see problems with the capacity and you can solve that through increase the bandwidth of the total LAG by adding "normal" LAGs between the Core switches and the stack.

See the example in the documantation:
https://documentation.extremenetworks.com/exos_22.1/EXOS_21_1/Slots_and_Ports/c_scalability-impact-l...
