S4 series chassis SLOT 2 COM LED not glowing

S4 series chassis SLOT 2 COM LED not glowing

Jeyaprkash_V
New Contributor
We have S4 Series Chassis loaded with
S4 Chassis I/O Fabric Module: 48 ports 1000BASE-X at Slot 2..
When we try to communicate with chassis through hyper terminal, there is no response.
We notified that LED on the chasis for slot 2 is not blinging..

Status of CPU & MGMT are glowing for slot2..

What is the LED status available on the top of the chassis

4 REPLIES 4

Jeyaprkash_V
New Contributor
Hello,
The problem is not only LED is liting up.. It is not responding (hyper terminal scereen) when we tried connected it through COM port

Mike_D
Extreme Employee

Hello,

This LED is acting up - no configuration is normally necessary to make it go.
May be something as simple as a loose light pipe - but I'd expect this led to be lit in your picture.
A call to support is probably in order.

Regards,
Mike



Jeyaprkash_V
New Contributor
Hi, Thanks for your quick reply.

We understand from the link provided is that “ The green-lit status LED under a chassis-based USB port indicates the presence of an operational mapped slot module,”

In our case we have installed fabric module at slot 2 and its CPU and MGMT LED are glowing.

It means that it is operational but LED at the top of chassis for slot 2 is not glowing. Do we need to do any configuration / settings on the chassis.

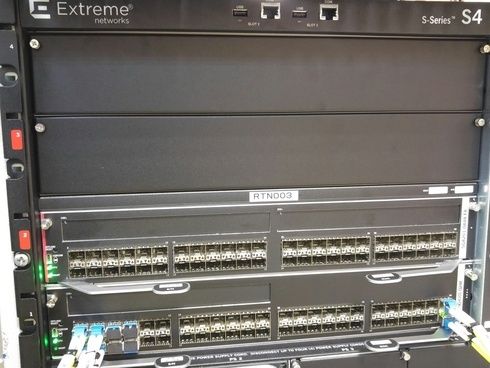

I have attached the photo of the chassis for quick reference
