Configure port status "up/down" alarm on netsight and EXOS switches?

Configure port status "up/down" alarm on netsight and EXOS switches?

Yusuf_Kabbara
New Contributor II
I need to configure my switches and netsight to give an alarm every time a port state change.
It'd be amazing if I can configure different alarms with different names for different ports!
for example:
-port 1 - alarm1
-port 2 - alarm 2
and so...

Note: I am usin x440 series switches, and Netsight version 7

Regards
Yusuf
7 REPLIES 7

Karthik_Mohando
Extreme Employee
Hi Yusuf,

You are almost there, The trapreceiver with correct credentials needs to be pushed to the switch and then the "snmptrapd" file need a entry.

The two steps are mentioned in the below article.

https://gtacknowledge.extremenetworks.com/articles/How_To/How-to-Configure-SNMPv3-Traps-via-NetSight...

Yusuf_Kabbara
New Contributor II
1 - I enabled the trap on switch ...

#enable snmp traps port-up-down ports all

2 - Created port group...

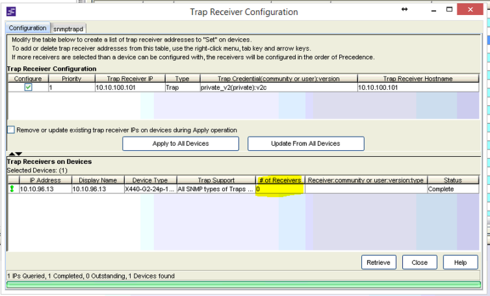

3 - checking the Trap Reciever ...

All devices --> right click on the device --> Trap Receiver Configuration




Note: # of Receiver is 0

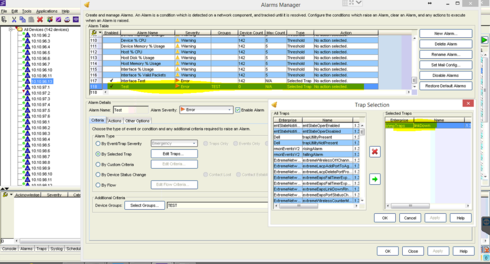

4 - created alarm




Any more steps to be done!?

Thanks
Yusuf

Karthik_Mohando
Extreme Employee
Hi Yusuf,

I am not in office for a while hence could not check, i will leave this for the other members for further inputs or
I would request you to raise this as a GTAC ticket for further investigation.

Bin
Extreme Employee
Hi Yusuf,

Also please, configure and enable traps "port-up-down" on your switch.

enable snmp traps port-up-down ports[port_list| all]


https://gtacknowledge.extremenetworks.com/articles/Solution/Port-up-down-alarms-trap-are-not-being-t...

Best regards,
Bin
