How to do Stacking Role from NONE to Backup

[Paul11]

How to do Stacking Role from NONE to Backup
---------------------------------------------------------------

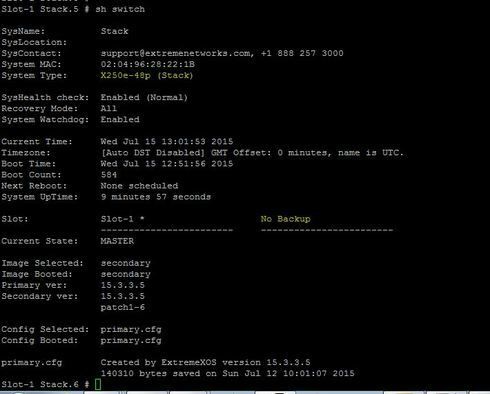

X250e-48p and x250e-48t Stacking. I want to achieve Master and Backup Stack Topology. Please advice me how to configure it. Thanks.

Slot-1 Stack.1 # show stackingStack Topology is a Ring
Active Topology is a Ring
Node MAC Address Slot Stack State Role Flags
------------------ ---- ----------- ------- ---
*00:04:96:28:22:1b 1 Active Master CA-
00:04:96:26:64:a9 2 Active CA-
* - Indicates this node
Flags: (C) Candidate for this active topology, (A) Active Node
(O) node may be in Other active topology
Slot-1 Stack.2 #

Slot-1 Stack.2 # sh stack configurationStack MAC in use: 02:04:96:28:22:1b
Node Slot Alternate Alternate
MAC Address Cfg Cur Prio Mgmt IP / Mask Gateway Flags Lic
------------------ --- --- ---- ------------------ --------------- --------- ---
*00:04:96:28:22:1b 1 1 100 CcEeMm--- Ee
00:04:96:26:64:a9 2 2 50 CcEeMm--- Ee
* - Indicates this node

Slot-1 Stack.5 # sh stack stack-ports
Stack Topology is a Ring
Slot Port Select Node MAC Address Port State Flags Speed
---- ---- ------ ----------------- ----------- ----- -----
*1 1 Native 00:04:96:28:22:1b Operational C- 10G
*1 2 Native 00:04:96:28:22:1b Operational CB 10G
2 1 Native 00:04:96:26:64:a9 Operational CB 10G
2 2 Native 00:04:96:26:64:a9 Operational C- 10G
* - Indicates this node
Flags: (C) Control path is active, (B) Port is Blocked
Slot-1 Stack.5 #

- Paul

[OscarK]

Yes, but only for slot 1, all vlans still exist, as is other configuration, only port assignment and port specific configuration actions need to be done.

[Paul11]

Hi OscarK,

It means i have to reconfigure the current configuration in order to replace different module in Stacking. 

[OscarK]

From my knowlegde unconfigure slot 1 and reconfigure the ports and vlans on it is the only option to replace a slot with a different slot.

[Paul11]

Hi all,

I will keep on update here. don't want to create another post. Since it's related to this stacking.

My question is How Can I Add Different Module to the current configured Module. Please see below for more detail.

I have uploaded the configuration to the Stack.
Current Configuration for Slot 1 is X250e-48t
and Now Replacement unit module is X250e-48p

if i use unconfigure slot 1.
Configuration will wipe out slot 1 config. i don't want to do it.

Please advice. How can i achieve without effecting the current config for port and vlan for slot 1 except changing from X250e-48t to X250e-48p. Thanks.

Slot-2 SW # unconfigure slot 1
This slot will be rebooted as part of this operation.

This will remove all port and vlan information for ports in this slot(1).
Any ports on this slot that are members of load share groups will be removed
from the load share group.
Continue ? (y/N)

configure slot 1 module X250e-48t
configure sys-recovery-level slot 1 reset
configure slot 2 module X250e-48t
configure sys-recovery-level slot 2 reset

Slot-2 SW # sh slotSlots Type Configured State Ports
-------------------------------------------------------------------------------------------------------------
Slot-1 X250e-48p X250e-48t Mismatch 50
Slot-2 X250e-48t X250e-48t Operational 50

Slot-2 SW # sh slot 1
Slot-1 information:
State: Mismatch
Download %: 0
Last Error: Card Mismatch
Restart count: 0 (limit 5)
Serial number: N/A(0) N/A(0)
Hw Module Type: X250e-48p
Configured Type: X250e-48t
Ports available: 50
Recovery Mode: Reset
Node MAC: 02:04:96:28:22:1B
Current State: FAIL (Card Mismatch)
Image Selected: secondary
Image Booted: secondary
Primary ver: 15.3.3.5
Secondary ver: 15.3.3.5
Config Selected: primary.cfg

Slot-2 SW #
