IPARP questions

[Alexandr_P]

Hello!


X670 with SupeVLANs, SubVLANs.

Aprox 7500 of clients.

Up to 300 clients in 1 VLAN.

After power-off of access switches (20 and/or more) X670 begin to send ARPs (IP addresses of clients connected to access switches)

This continues throughout 40 minutes with high broadcast traffic load.

Questions:

• what we have to do to prevent or minimize this issue?
• what correlation between ARP locktime and ARP timeout?
• what correlation we have to understand when configure FDB and IPARP timeouts?
• does in this case will help rate-limit for bcast traffc? (or we have to use it for prevent loops?) what will be with bcast traffic when limit will be exceeded (black-hole?)?

Thank you!

[Alexandr_P]

Thank you, Nikolay!

[Necheporenko__N]

Hello Aleksandr,

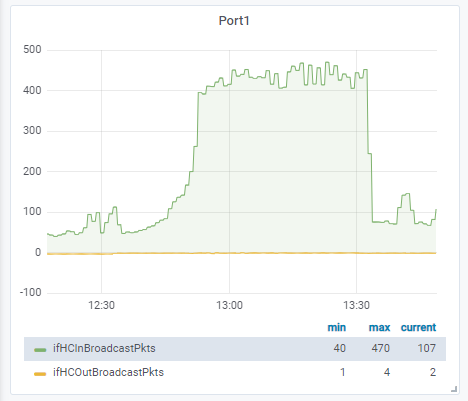

Actually it is up to customer’s requirements, if 470 pps is a high number then they may try to use

• rate-limit flooding
• egress meter
• UPM to apply some ACL or disable affected interfaces
• Clear-flow

Best Regards,

Nikolay

[Alexandr_P]

Hello, Nikolay!

I understand that this is expected behavior.

But main question is how to optimize configuration to minimize this issue?

Because in case of this issue high volume of bcast traffic is affects downstream less efficient switches.

Thank you!

[Necheporenko__N]

Hello Alexandr,

Were those access switches directly connected to the X670? If yes then when links went down all fdb/entries have been cleared, and in a case switch receive any traffic destined to the hosts which entires just have been cleared it will sent out new ARP to resolve IP again. This is expected and by design.

Best Regards,

Nikolay
