how to correct configure snmp community in a RFS6000 controller
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Report Inappropriate Content
‎07-13-2022 02:33 PM
Hi,
I tried to set up a snmp community on the RFS6000 controller that we own, but it doesn't seem to be working.
I set up the snmp communit and then in
See error below.


Any idea?
I tried to set up a snmp community on the RFS6000 controller that we own, but it doesn't seem to be working.
I set up the snmp communit and then in
Rule > Allow Permit > Type Any ACL
I try to include the ANY option, but it returns an error about not having an IP.See error below.
Detail :Not Available
Message :Invalid IPv4/mask format
ErrorPath :/wing-config/ip_snmp_acl[ name='cti' ]/ip_snmp_acl_rule
Severity :error
Type :Application Error
**********************************
Any idea?
15 REPLIES 15
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Report Inappropriate Content
‎07-18-2022 03:11 PM
Hi Christopher,
I got the MIBS file, but now the difficulty is to search for the information that the controller provides through SNMP.

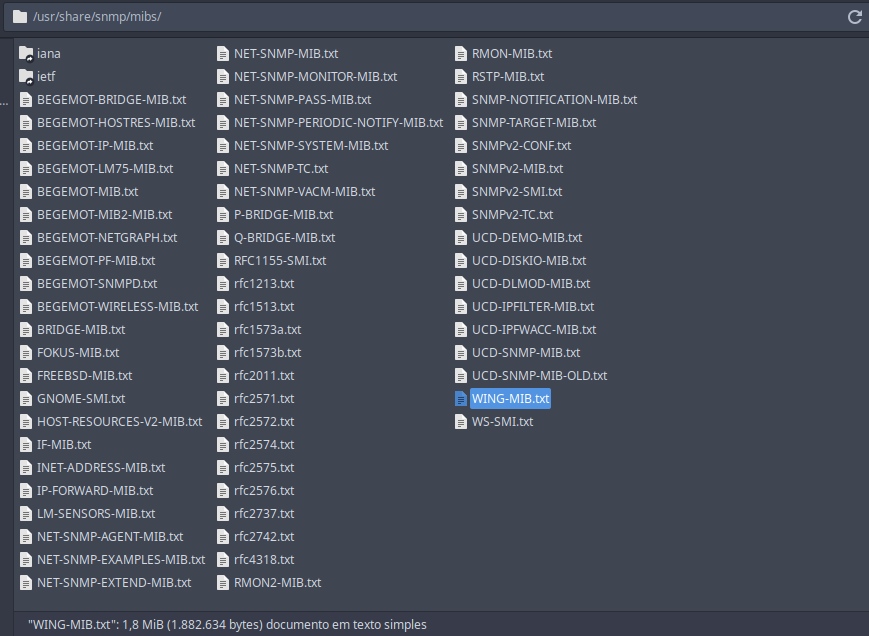

I copied the mibs to the /usr/share/snmp/mibs folder of my ubuntu and ran the command below.

$ snmpwalk -M +/usr/share/snmp/mibs -v2c -c cti 172.16.15.1 1.3.6.1.4.1.388.50.0.4
SNMPv2-SMI::enterprises.388.50.0.4 = No Such Object available on this agent at this OID
$ snmpget -M +/usr/share/snmp/mibs -v2c -c cti 172.16.15.1 1.3.6.1.4.1.388.50.0.4
SNMPv2-SMI::enterprises.388.50.0.4 = No Such Object available on this agent at this OID
Does this result mean that the OID exists, that the controller returned the command, but did not find any data?
I got the MIBS file, but now the difficulty is to search for the information that the controller provides through SNMP.
I copied the mibs to the /usr/share/snmp/mibs folder of my ubuntu and ran the command below.
$ snmpwalk -M +/usr/share/snmp/mibs -v2c -c cti 172.16.15.1 1.3.6.1.4.1.388.50.0.4
SNMPv2-SMI::enterprises.388.50.0.4 = No Such Object available on this agent at this OID
$ snmpget -M +/usr/share/snmp/mibs -v2c -c cti 172.16.15.1 1.3.6.1.4.1.388.50.0.4
SNMPv2-SMI::enterprises.388.50.0.4 = No Such Object available on this agent at this OID
Does this result mean that the OID exists, that the controller returned the command, but did not find any data?
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Report Inappropriate Content
‎07-14-2022 03:51 PM
...
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Report Inappropriate Content
‎07-14-2022 11:13 AM
Looks like it's an issue with 5.8.x which was resolved in 5.9.1.0.
BR.
------------------------------
Christoph S.
------------------------------
BR.
------------------------------
Christoph S.
------------------------------
Christoph S.
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Report Inappropriate Content
‎07-14-2022 11:34 AM
Ok.
Does this version 5.9.1.0 still support AP621?
If yes, can I download the firmware without a support contract?
Does this version 5.9.1.0 still support AP621?
If yes, can I download the firmware without a support contract?
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Get Direct Link
- Report Inappropriate Content
‎07-14-2022 11:41 AM
Hello Elias,
Wing v5.9.1.x (last was v5.9.1.9) and yes, the RF6000/AP621 are supported under v5.9.1.x. You will require a support/software contract in order to download the firmware from our portal.
Thanks,
Chris Frazee
Wing v5.9.1.x (last was v5.9.1.9) and yes, the RF6000/AP621 are supported under v5.9.1.x. You will require a support/software contract in order to download the firmware from our portal.
Thanks,
Chris Frazee
